Welcome to Microtrol’s online support page
** New ** SMART Touch Controller 2
NOTE:
- We recommend that all STC2 are upgraded to v1.1.3 or above
- After downloading the update package to a PC, the upgrade can be performed via the web browser interface in the STC2.
- Ensure the date and time of the STC2 matches the PC, otherwise you may not be able to connect to the STC2 web server.
- To connect to the web server of a STC2 running v1.0.0, v1.0.1 or v1.0.2, the PC will need internet access. (This is no longer required in v1.0.3 and above).
ECO Datenspeicher
DYAUS-1 FANCOIL CONTROLLER
BLACK PEAR 2
The Black Pear 2 allows a building management system (BMS) to monitor and control air-conditioning units on a system from one of five manufacturers, without the need for a central controller.
PYRUS-RTC (TOSHIBA RBC-MTSC2) - Mini Touch Screen Controller 2
Notes for MTSC-1 and MTSC-2:
1) Firmware v2.xx and above is compatible with TU2C-Link units.
2) Firmware v3.07 and above is compatible with VN heat-exchanger units.
3) An accessibility option has been added, which shows large icons, configurable foreground and background colours, and allows units to be controlled using simple swipe gestures.
BLACK PEAR (v1) INTERFACE MANUALS AND FIRMWARE
For all MODBUS, BACnet & Trend Black Pear
BLACK PEAR (v1) CONFIGURATION SOFTWARE.
TOSHIBA SmartTouch Controller v1
Manual and Software upgrades for Colour touch screen central controller.
Note: Before upgrading, extract all files from the downloaded ‘zip’ folder and read Upgrade_instructions.txt for details.
TOSHIBA TSI-1 Modbus Interface
The TSI-1 is a versatile interface which connects to the TCC-LINK A/B network on the Toshiba air conditioning equipment. This low cost solution gives you full control of on/off, setpoint, fanspeed, mode & louvre, with added features of duty stand by, night set back, eco modes & hotel occupancy.
Please note:
The configuration software is only compatible with Windows 7 and above.
Firmware v1.487 and above is now compatible with TU2C-Link units.
TOSHIBA TXIO 3rd party interface
The Interface enables third party equipment to be controlled via the TCC network on the Black Pear SMART Touch controller, with an option to attach a 10K3A1 thermistor.
TOSHIBA RAS-M (MIRAI) Infra-red Interface
This Interface replaces the standard infra-red PCB card in Toshiba RAS units, and provides a connection to Toshiba's TCC-Link.
This allows the unit to be centrally controlled either from a BMS using a Black Pear or Toshiba Smart Touch Controller.

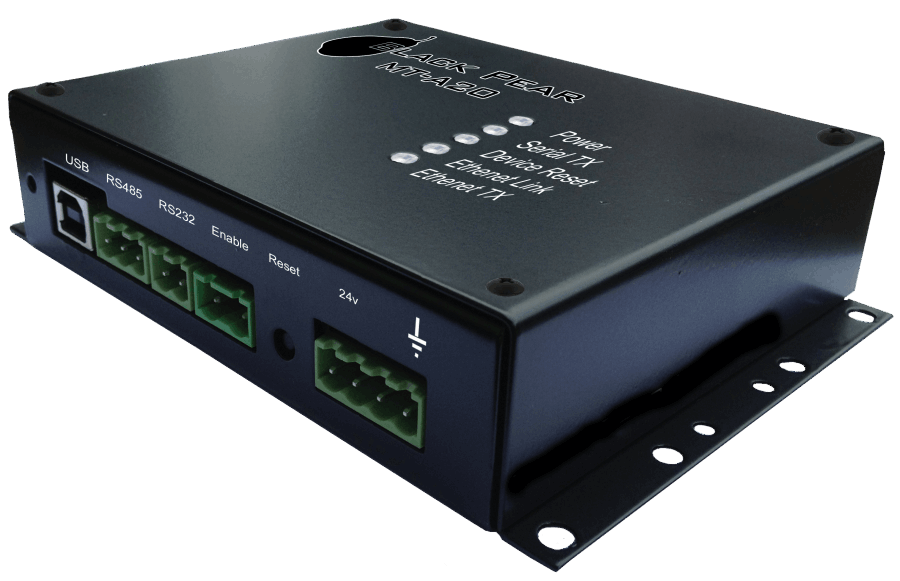

MX Range
Connects to various Mitsubishi Central Controllers and provides a Modbus (RS232, RS485 or Modbus/TCP) or BACnet/IP interface
